New 2023 Coachmen RV Catalina Destination Series 39RLTS

Destination Trailer

Stock #PX027869

Manheim, PA

1 of 6

Specifications

Sleeps	4	Slides	3
Length	40 ft 11 in	Ext Width	8 ft
Ext Height	11 ft 8 in	Int Height	7 ft
Interior Color	Java	Hitch Weight	1494 lbs
GVWR	11000 lbs	Dry Weight	9761 lbs
Cargo Capacity	1239 lbs	Fresh Water Capacity	44 gals
Grey Water Capacity	80 gals	Black Water Capacity	30 gals
Furnace BTU	35000 btu	Available Beds	King
Refrigerator Type	Residential	Refrigerator Size	18 cu ft
Cooktop Burners	3	Shower Size	48" x 30"
LP Tank Capacity	30 lbs	Water Heater Capacity	10 gal
Water Heater Type	Gas/Electric DSI	AC BTU	15000 btu
TV Info	LR 39" Flat Screen	Axle Count	2
Washer/Dryer Available	Yes	Number of LP Tanks	2
Shower Type	Shower w/Seat	VIN	5ZT2CA4B1PX027869

Description

Coachmen Catalina Destination Series destination trailer 39RLTS highlights:

Dual Recliners
Private Bedroom
Kitchen Island
Ample Storage
Bar Stools
Fireplace

Get away to your ranch, farm or lake house that you have created by having this destination trailer! The spacious living and kitchen area offers opposing slides, a center island with bar stools, a 39" TV with a dual zone entertainment sound bar, and a fireplace. You will also find seating on a tri-fold sofa and booth dinette as well as dual recliners. The chef will have full amenities to keep everyone fed, plus a residential refrigerator to store any leftovers. Take a break in the full bathroom which includes a shower with a seat and linen storage. When it's time to retire for the evening, the front bedroom gives you a spacious oasis with a king bed slide, a ceiling fan, and lots of storage. You might even like to add a few options such as a free standing dinette, a washer/dryer to the prepped space, and/or an optional 18' awning that would provide protection from the outside elements.

The Catalina Destination Series trailers by Coachmen RV are constructed with a seamless Alpha roof membrane, a cambered structural steel l-beam frame, full length frame E-coated outriggers, fiberglass insulation throughout, and a platinum aluminum exterior metal skirt. Along the exterior you will find JBL Elite exterior speakers, a battery disconnect switch on the A frame and a LP quick connect port. The interior offers two 12V 14" ceiling vent fans in the living and bathroom, full length kitchen drawer guides, Salvage Light Oak cabinets, a slim line range hood, an upgrade Easy Step shower pan-style shower, and Congoleum Woodplank linoleum flooring for easy care. Why wait to enjoy your favorite location every chance you get, choose your favorite destination trailer today!

Features

Standard Features (2023)

Construction and Equipment

Universal Solar Prep w/ Installed Roof Panel Port
Full Lino in Slides and Bedroom
Cambered Structural Steel I-Beam Frame
Full Length Frame E-Coated Outriggers
5/8" Tongue & Groove Plywood Floor Decking
2"x3" Floor Joists on Approximately 12" Centers
5" Floor To Frame Steel Lag Bolts
Darco Subfloor Protective Wrap/Enclosure
3/8" Fully Decked Walk-On Roof
Seamless Alpha Roof Membrane with Lifetime Warranty
Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
5/8" Plywood Under Bed & Dinette Base
7’ Interior Height
Easy-Trac Rack and Pinion Slide-Out(s)
Schwintek Slide Out
R-7 Fiberglass Insulation Throughout
10 Gal. Gas/Electric DSI Water Heater
Water Heater By-Pass Winterization Kit
12V Demand Water Pump
Premium Exterior Graphics Package
Platinum .024" Aluminum Exterior w/.030 Skirt Metal
Polished HD Aluminum Fender Skirts
Dexter EZ Lube Axles w/Leaf Spring Suspension
Self Adjusting Brakes
Roto-Cast Holding Tanks
Painted Bumper w/ Drain Hose Carrier and End Caps
35,000 BTU Auto-Ignition Furnace w/Wall Thermostat
15,000 BTU Fully Ducted A/C
50 AMP Elect. Service
Upgraded Aluminum Wheels
Magnetic Baggage Door Latches

Exterior

Heavy Duty Standard Tongue Jack
Black Tank Flush
Battery Disconnect Switch
Outside Utility Shower w/ Hands Free Holder
20lb. LP Tank (2) w/ABS Cover
LP Quick Connect
Flush Mount Baggage Doors w/Radius Corners
Stabilizer Jacks
G20 Tinted Privacy Windows
(2) JBL Elite Exterior Speakers
Friction Hinge Door
Radius Cornered Fiberglass Entry Door
Exterior 110V G.F.C.I Protected Receptacle
Exterior RG-6 Coax Cabling and Satellite Prep
Exterior TV Hookup
Rain Gutters with Drip Spouts
Radius Entry Steps
XL Swing Arm Entry Assist Handle (Main Entrance Only)
Residential Sliding Glass Patio Door
Large Front Bay Windows
Bottle Openers (Exterior Camp Kitchens)
Pets - "Leash Link" Quick Hookup D-Ring

Safety

Smoke Alarm
LP/CO Gas Detector
Fire Extinguisher
Fire Escape Windows
Entrance Door Window
Dead-Bolt Lock on Entry Door
SafeRide RV Motor Club (1 YR Roadside Assistance)

Interior

(2) 12V 14" Ceiling Vent Fans (Living Room & Bathroom)
Magnydyne 4G LTE Connectivity with Wifi Booster and Extender
Siphon 360 Roof Vent in Bathroom
Accent Wall Board Behind Entertainment Center, Bedroom, and Camp Kitchen
39" TV
Swing Arm TV Bracket
JBL Aura MP3/FM Stereo w/Bluetooth and USB Charge Port
(2) Multizonal JBL Premium Interior Speakers
18 Cu. Ft. Residential Refrigerator
Seamless Thermofoil Countertops Throughout
Under-mount Farm Style Sink
Residential Kitchen Faucet w/Pull Down Sprayer
Flush Counter Kitchen Sink Covers (2-Tandem Axle Models)
Full Length Kitchen Drawer Guides
LCI One Control Monitor Panel System
3 Burner SST Range w/Flush Glass Top & LED Accent's (21" Oven)
Slim Line Range Hood
Silverware Kitchen Drawer
Microwave W/Glass Turn Table
Congoleum Woodplank Linoleum Flooring (including Slides and Bedroom)
Residential In-Floor Ducted Heat
4,000 Lumen Interior Lighting
Directional Master Bed Reading Lights
Residential Tri-Fold Sofa
Designer Wall Light Main Slide Room
Hard Valance Window Treatment w/Decorative Lambrequins
Pleated Night Window Shades
Pedestal Thermofoil Dinette Table
Under Bench Dinette Storage
Easy Access Booth Dinette Storage Doors
Marine Toilet with Foot Flush
ABS Tub/Shower Surround w/Shelves
Skylight Above Tub/Shower
Glass Step-In Shower w/ABS Surround (Per Floorplan)
Medicine Cabinet with Mirror
Bedroom USB Surface Mounts(2)
Kitchen USB's & Outlets
USB Surface Mounts Near Bunk Beds
Solid Master Bedroom Door(s) (Per Floorplan)
Solid Bunk Room Door (Per Floor Plan)
Mirrored Wardrobes in Master Bedroom (Per Floorplan)
Master Bedroom Overhead Cabinets
Underbed Storage
Designer Fitted Master Bed Sheet
Teddy Bear Bunk Mats
Fireplace w/Electric Heater in the Living Room
Ceiling Fans in Living Room and Master Bedroom w/Wall Switch
Premium Serta Mattress
King Bed (39MKTS, 39RLTS Only)
Washer/Dryer Prep (39MKTS, 39RLTS only)

Options

Enclosed, Fully Sealed Underbelly
Peak Performance Solar Package – 200W Panel w/ 30 A Solar Controller
2nd 13,500 BTU A/C
Free Standing Table w/4 Chairs
Full Size Exterior Camp Kitchen (40BHTS)
GE Washer/Dryer Combo Unit (39MKTS, 39RLTS Only)
Electric Awning w/Multicolor LED Strip & Remote -Carefree
Spare Tire w/ Tire Carrier & Cover
Non-Self Contained w/Porcelain Toilet
Detachable Hitch
CSA Standards

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Great experience!
Tony and Nate were great! They got me the best deal and assisted us with top customer service.

Cole from Bakers Summit, PA
Service
Service was amazing the driver did a fantastic job maneuvering the trailer and setting it up

Marques from Township of Jackson, PA
Great to Deal With
We purchased a “new” used couples RV from RV Value Mart this fall. We had a great experience with no high pressure. We traded in our older RV and they gave us a more than fair trade in price. They are very knowledgeable about their products and offer sound and good information. If we are ever to purchase

Karen from Quakertown, PA

We are here to help, call us at
717-664-0448 or Contact Us

We are here to help!

717-664-0448
Contact Us
Contact Sales

RV Value Mart is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @717-664-0448 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2023 Coachmen RV Catalina Destination Series 39RLTS

Our Locations

Our Hours

New 2023 Coachmen RV Catalina Destination Series 39RLTS

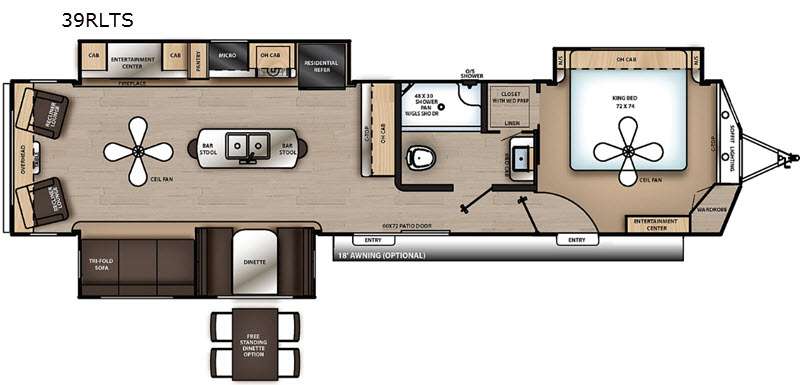

39RLTS Floorplan
